Biconical Antennas30 - 300 MHz

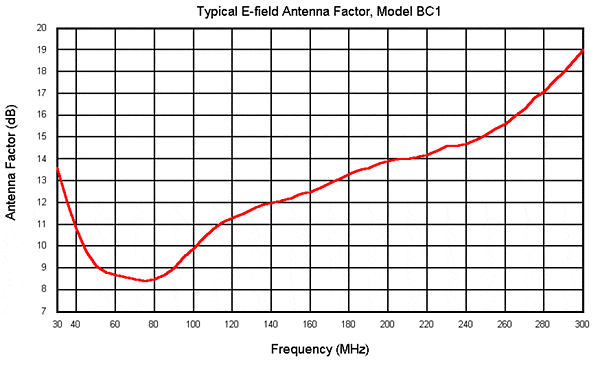

Model BC1 Biconical Antenna

Specifications

Frequency Range:	30 -300 MHz
Impedance:	50 ohms nominal
Connector:	Type N jack
Polarization:	Linear
Maximum Power	BC1 : 1 watt BC2 : 100 watts cw BC5 : 500 watts cw
Length:	54 inches (137 cm)
Elements:	20 inches (51 cm) diameter
Height:	32 inches (81 cm)
Weight:	5 pounds (2 kg)
Mounting Tube:	22 mm Diameter Stainless Steel
Finish:	Powder Coat

ISO 17025 Accredited Calibration Available

Applications	Options
Radiated Emissions	Tripod
Radiated Immunity	Tripod Mount (Model TRAM-1)
Pre-scan / Full Compliance	SNAP Mount
Site Survey / E-Field Measurements	Carrying Case

Data Sheet
